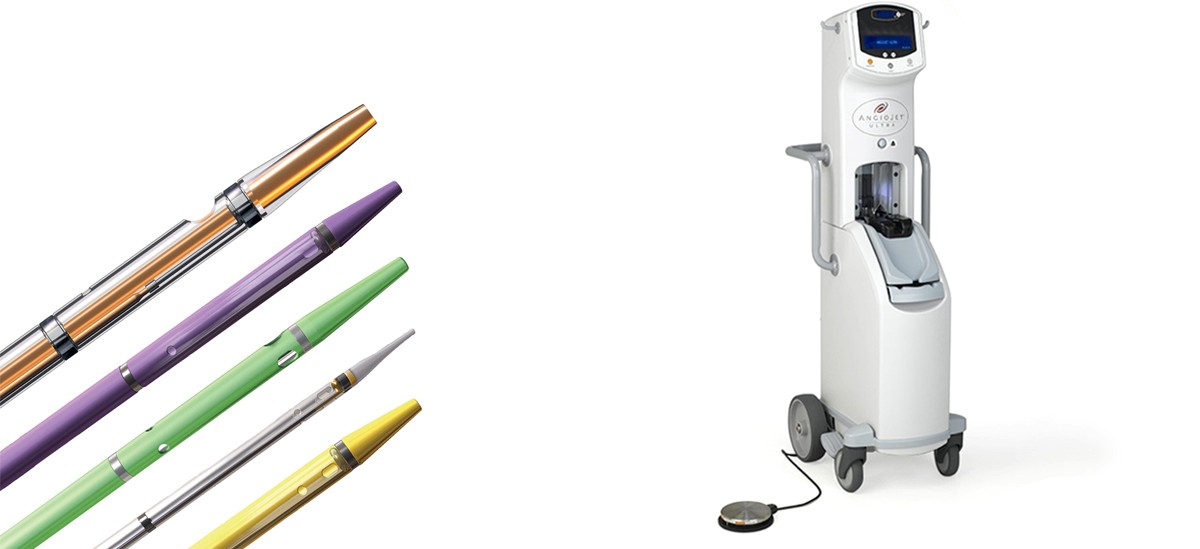

AngioJet™

Product Detail

Features & Benefits Overview

The AngioJet Thrombectomy system provides the power and flexibility for rapid thrombus removal, quick restoration of blood flow, symptom improvement and ease of use.

Active aspiration and Power Pulse lytic delivery for tough clots
Wide offering of catheters for treating arterial, venous and AV access in vessels ranging from 1.5 mm to large iliofemoral clot burdens
Compact, highly mobile console design

Catheter Specifications

Model	Indication	Delivery Platform	Minimum Vessel Diameter	Catheter Length	Catheter Diameter	Guidewire	Power Pulse™ Enabled	Guidewire Swappable	Contrast Injection Port
ZelanteDVT™	Venous	OTW	6 mm	105 cm	8 F	0.035”	Yes	Yes	Yes
Solent™ Omni	Peripheral Arterial and Venous, AV Access	OTW	3 mm	120 cm	6 F	0.035”	Yes	Yes	Yes
Solent™ Proxi	Peripheral Arterial and Venous, AV Access	OTW	3 mm	90 cm	6 F	0.035”	Yes	Yes	Yes
Solent™ Dista	Peripheral Arterial	OTW	1.5 mm	145 cm	4 F / 3 F	0.014”	Yes	N/A	N/A
AVX™	AV Access Grafts and Fistula	OTW	3 mm	50 cm	6 F	0.035”	N/A	N/A	Yes

Console Overview

Advanced, User-Friendly Console

Control system automates set-up and monitors operation
Step-by-step interface for procedural efficiency
Automated system self-configures to each catheter
Compact, highly mobile console

Mechanism of Action

1. The AngioJet Console monitors and controls the system.

2. The Console energizes the pump which sends pressurized saline to the catheter tip.


3. Saline jets travel backwards to create a low pressure zone causing a vacuum effect. (Image 1)	4. Thrombus is drawn into the in-flow windows and the jets push the thrombus back down the catheter. (Image 2)	5. Thrombus is evacuated from the body and into the collection bag. (Image 3)
